Module

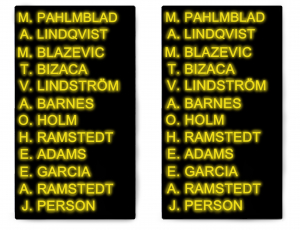

NAME MODULE BASIC LED-300
2 add-on modules for BASIC LED-300 Scoreboard with LED digits in SMD technology.
Shows player names in basketball.
Ideally, the boards are located together with the modules for individual fouls.
The boards are controlled by PC.
Player names
12 characters per player (12 players per team)
Character height
152/132 mm

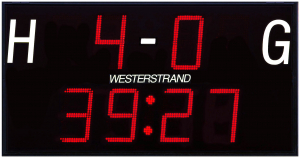

SCOREBOARD MODULE F1-LED
Scoreboard with LED digits in SMD technology. Its design makes it suitable for e.g. soccer and bandy.
The board is operated via a hardwired or wireless remote unit.
Shows the score and game time for the current game with extra bright LEDs for outdoor use.
The scoreboard can also be supplemented with add-on modules for real-time scores in other games. It has a matrix for text information and fixed advertising.
Scores
00-99 (two digits per team).
Game/Playing time
Countup or countdown displayed using four digits, min and sec.
Local time can be shown when no game is in progress.
Character height
450 mm
MODULE F2 LED - MAX 9-9
Add-on module for scoreboard with LED digits in SMD technology that shows scores from other games (max 9-9).
The boards are connected to Module F1-LED and operated using the same remote unit as the scoreboard.
Scores
0-9 (one digit per team)
Character height
450 mm

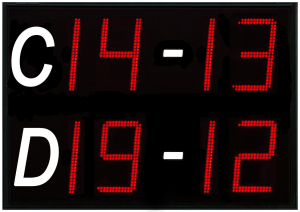

MODULE F2 LED - MAX 19-19
Add-on modules for scoreboard with LED digits in SMD technology that shows scores from other games (max 19-19).
The boards are connected to Module F1-LED and operated using the same remote unit as the scoreboard.
Scores
0-19 (two digits per team)
Character height
450 mm

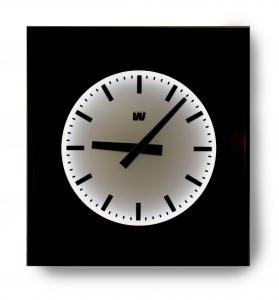

MODULE F3-LED - ANALOG CLOCK
Analog clock with internal LED illumination intended for outdoor use.
Made using the same case as the other add-on modules for F1.
Control system
The clock is synchronized via GPS. The receiver is built into the clock.
Installation
Single-sided for outdoor use where the GPS antenna has free line of sight to the sky.
Power supply
Requires 230 VAC

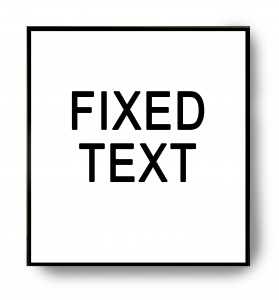

MODULE F5-LED - ADVERTISING/SPONSOR
Advertising module with internal LED illumination; intended for indoor use.
Made using the same case as the other add-on modules for F1. It comes with a white polycarbonate front intended for printing.
Installation
Single-sided for outdoor use.
Power supply
Requires 230 VAC
