DualGuard-S

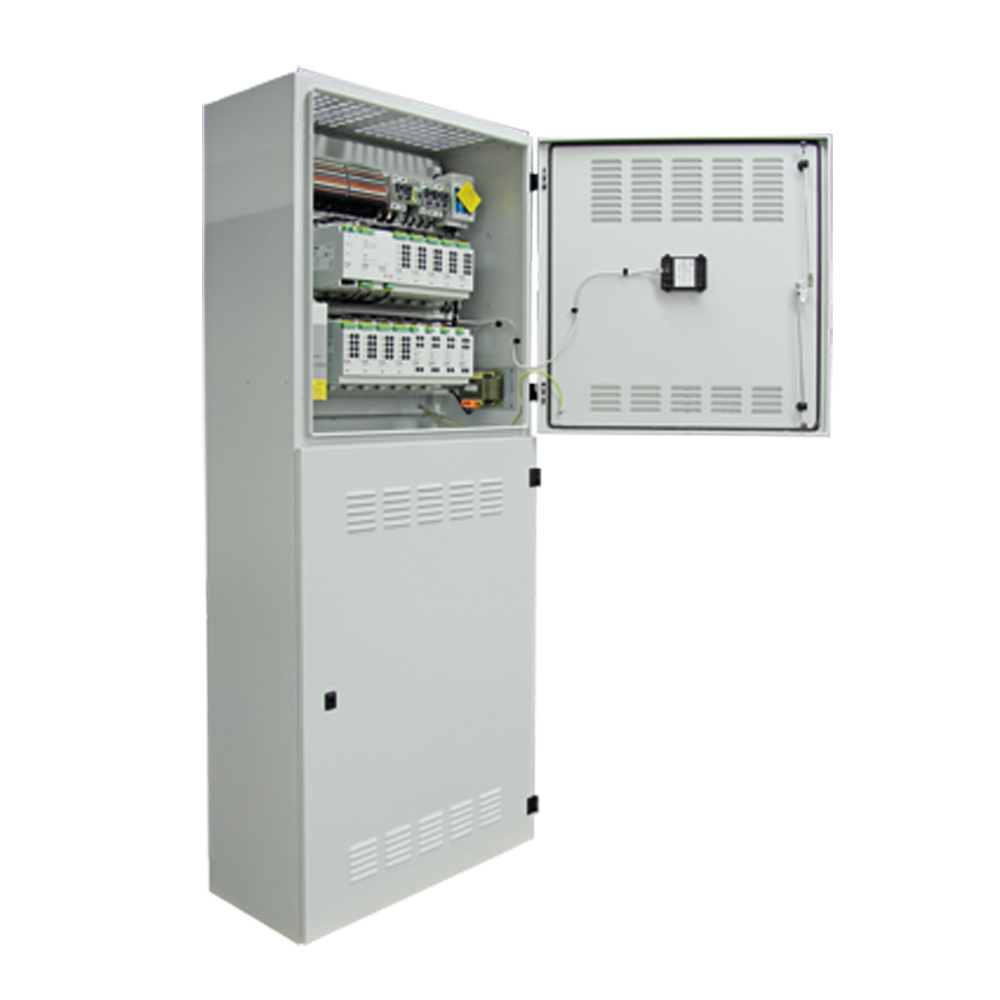

The DualGuard-S central battery system supplies safety and escape sign luminaires with reliable power (230 V AC/220 V DC), automatically checks itself and monitors each of the connected CG-S luminaires (up to 20 per circuit) directly via the supply cable.
Thanks to the STAR technology, the switching mode of each connected CG-S luminaire in a 50 Hz or 60 Hz network can be programmed as required via the central battery system controller.
This means that mixed operation of the continuous light, switched continuous light and standby light modes is possible in one and the same circuit - without any additional data cable. The central battery system can be monitored and controlled via the ACU DG module and the 4.3" or 7" display with non-volatile program memory. The system automatically checks the functioning of all connected devices and emergency luminaires and will issue an alert in the event of a fault.
The next generation central battery system from the largest manufacturer of emergency lighting
Fast commissioning
Fast commissioning thanks to the automatic luminaire search function.
Time-saving automatic function test
The automatic detection of faults in battery strings connected in parallel as well as checking the charging technology, battery strings, battery blocks, insulation monitor and phase monitor function.
Reduced inspection effort
Reduced inspection effort thanks to CEWA GUARD technology; automatic function monitoring of up to 20 luminaires per circuit.
Reduction of installation costs
STAR technology and freely programmable mixed operation of the switching types per luminaire in a circuit ensure a reduction in installation costs.

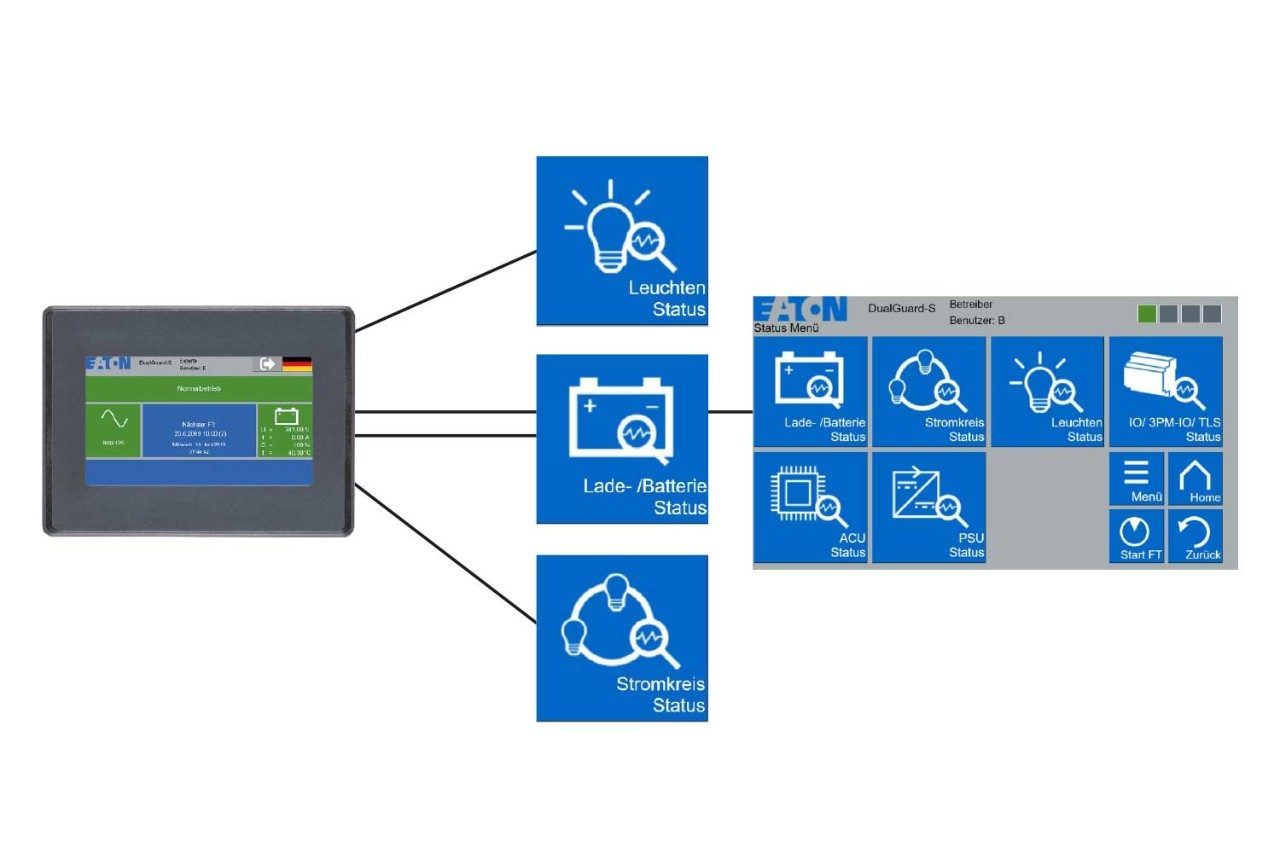

Greater user comfort - TFT touch screen display in 4.3" or 7"
In a building, a variety of tradespeople and internal staff have access to electrical operating rooms and the security of any system (including emergency lighting) is essential.
To stop unauthorised operation, DualGuard-S provides a simple way to create user profiles depending on the access required. Whether the user needs simple status information or the ability to conduct network system programming, it provides the necessary flexibility without compromising on security.
The displays required under technical standards must be inspected during initial acceptance or recurring tests by certified inspectors.

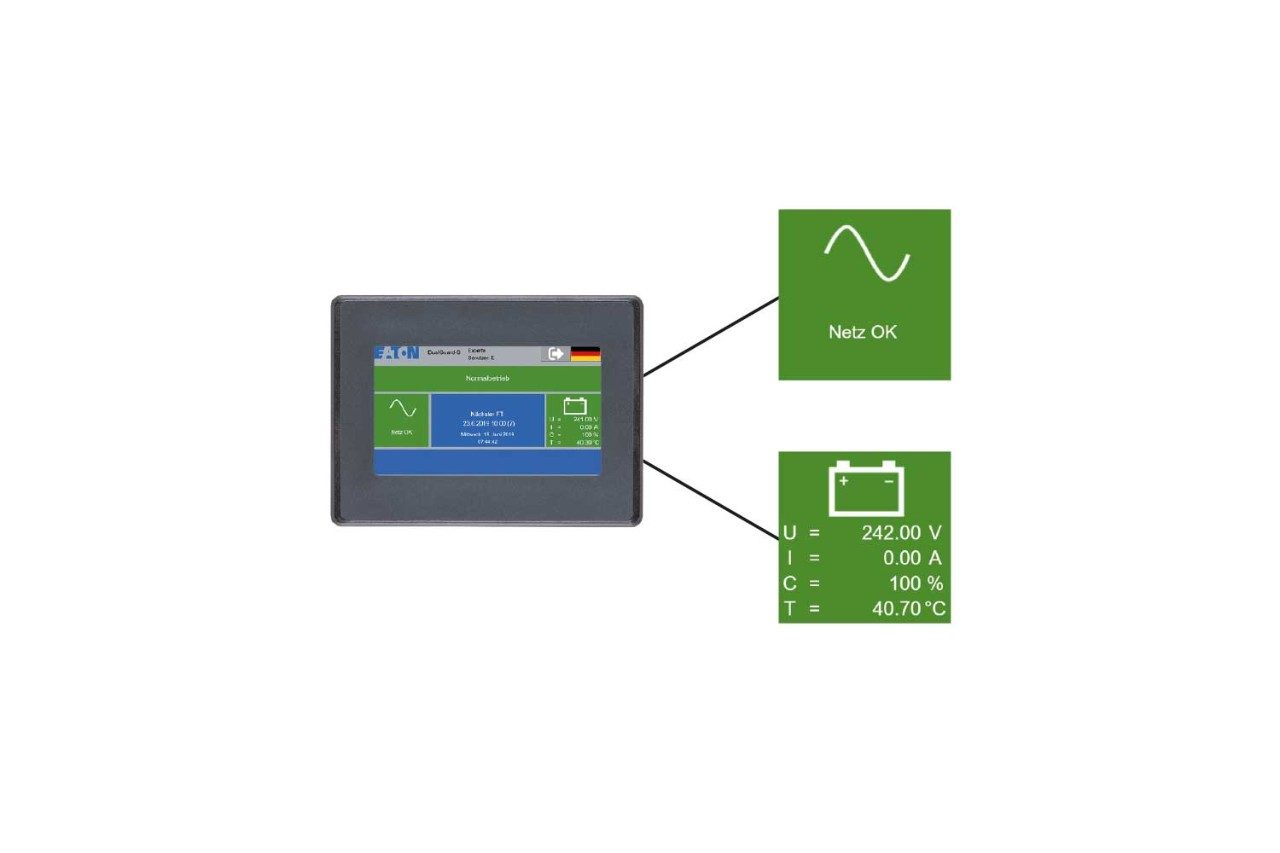

All critical status information is available at a glance without password entry or opening the DualGuard-S system.
Easy access to further status information through innovative navigation.
Operators and installers use the detailed information on the maintenance of the DualGuard-S.
