CGLine+
The CGLine+ is a controlling and monitoring system for emergency safety lights and exit signs that provides automatic function and duration tests recorded in a logbook - ensuring compliance for building managers without the hassle and cost of manually testing each luminaire.
An integrated web server enables the convenient control or monitoring of all connected CGLine+ luminaires from any workplace PC on the intranet with a standard web browser and without special software.
Advanced control features, such as block, rest and switch-off modes, have a positive impact on the luminaire’s lifespan, the daily management and the power consumption of the installation. In addition, Increased Affordance and Adaptive Evacuation features enable safer evacuation routes for building users.

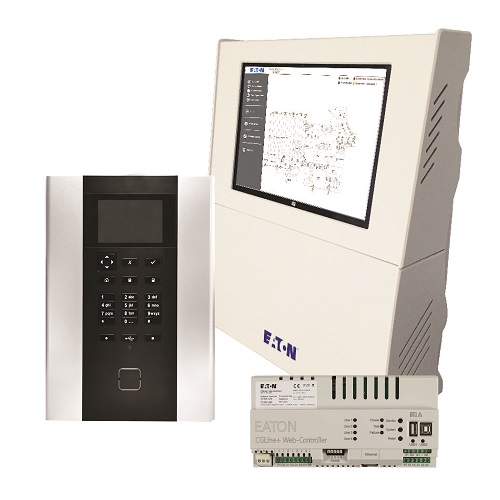

A full range of CGLine+ controllers are available depending on the size of the emergency lighting installation all ensuring maximum safety, improved maintenance and reduced operating costs.
MORE LUMINAIRES
For connecting up to 800 luminaires in max. 4 lines
MORE SAFETY
For initiating tests, displaying results and storing them
MORE CONVENIENCE
Web-server for visualization, control and monitoring
Features
Management of Adaptive Evacuation and Increased Affordance functionalities
4 lines of maximum 200 luminaries or 2 lines of maximum 400 luminaires
Automatic luminaire search function requiring no manual addressing
Simple sorting using unrestricted short address assignment
Unrestricted entry of target location names for the luminaires with up to 20 characters
Clearly-shown allocation of luminaires to up to 8 zones per line
Customisable time/date setting for all the tests
Up to 8 test groups per luminaire can be defined for the Function Test (FT) and Duration Test (DT)
Electronic logbook storage for a period of minimum 4 years
Blocking the emergency lighting function during non-operational periods (all / per bus line/ per zone / per luminaire)
Luminaires in maintained mode switchable (all / per bus line / per zone / per luminaire)
Password protected access as an administrator or user

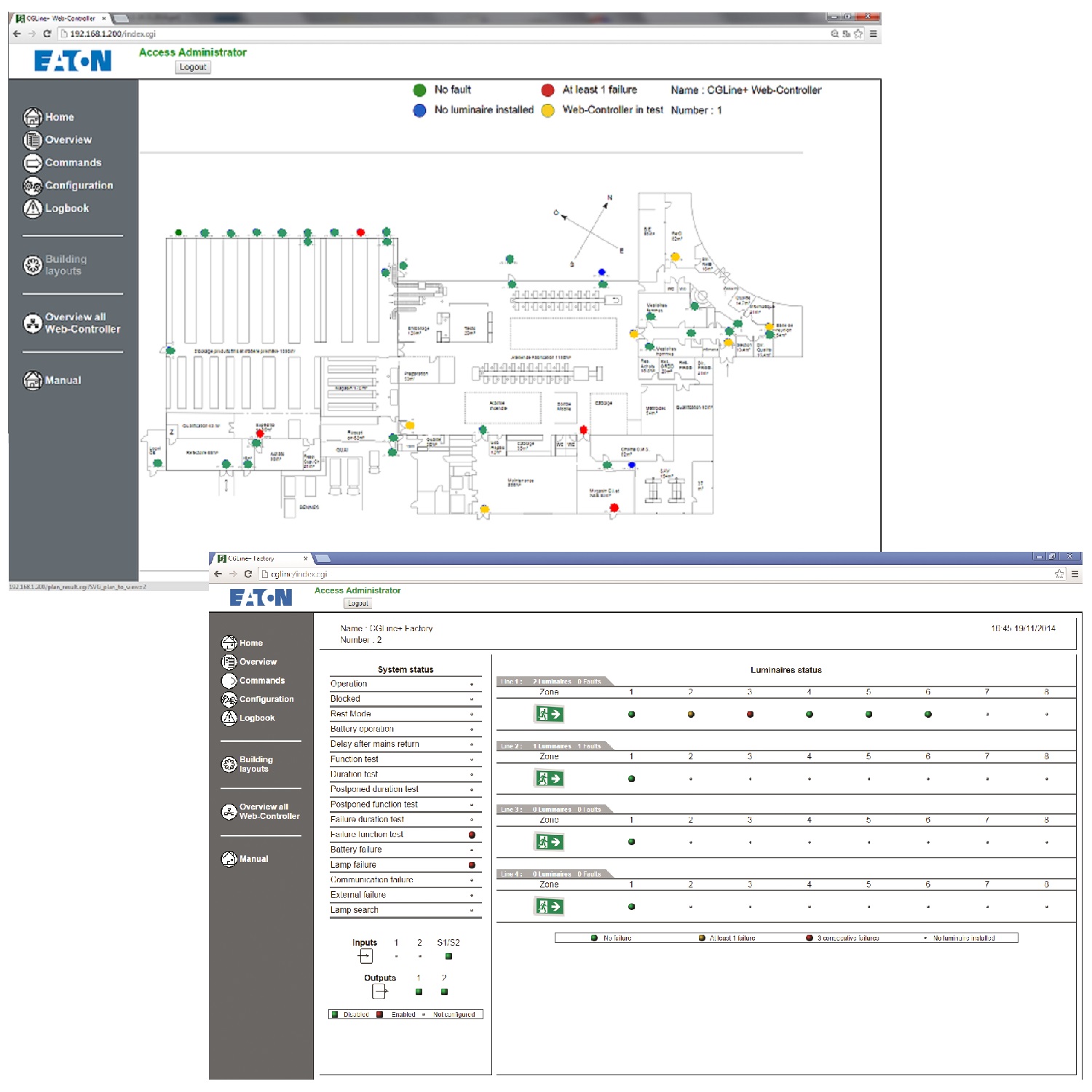

Visualization of luminaires in up to 30 different building layouts
Efficient and convenient analysis of the logbook using the CGLine+ PC software
Web-Controller

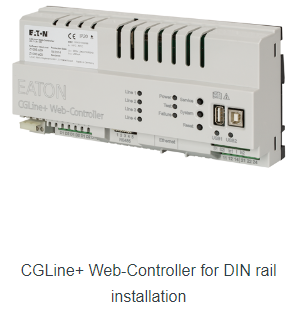

CGLine+ Web-Controller can visualise a total of 800 CGLine+ luminaires: 4 lines of maximum 200 luminaires each or 2 lines of 400 luminaires each.
An integrated web server is available for convenient visualisation, control and monitoring of all connected CGLine+ luminaires.

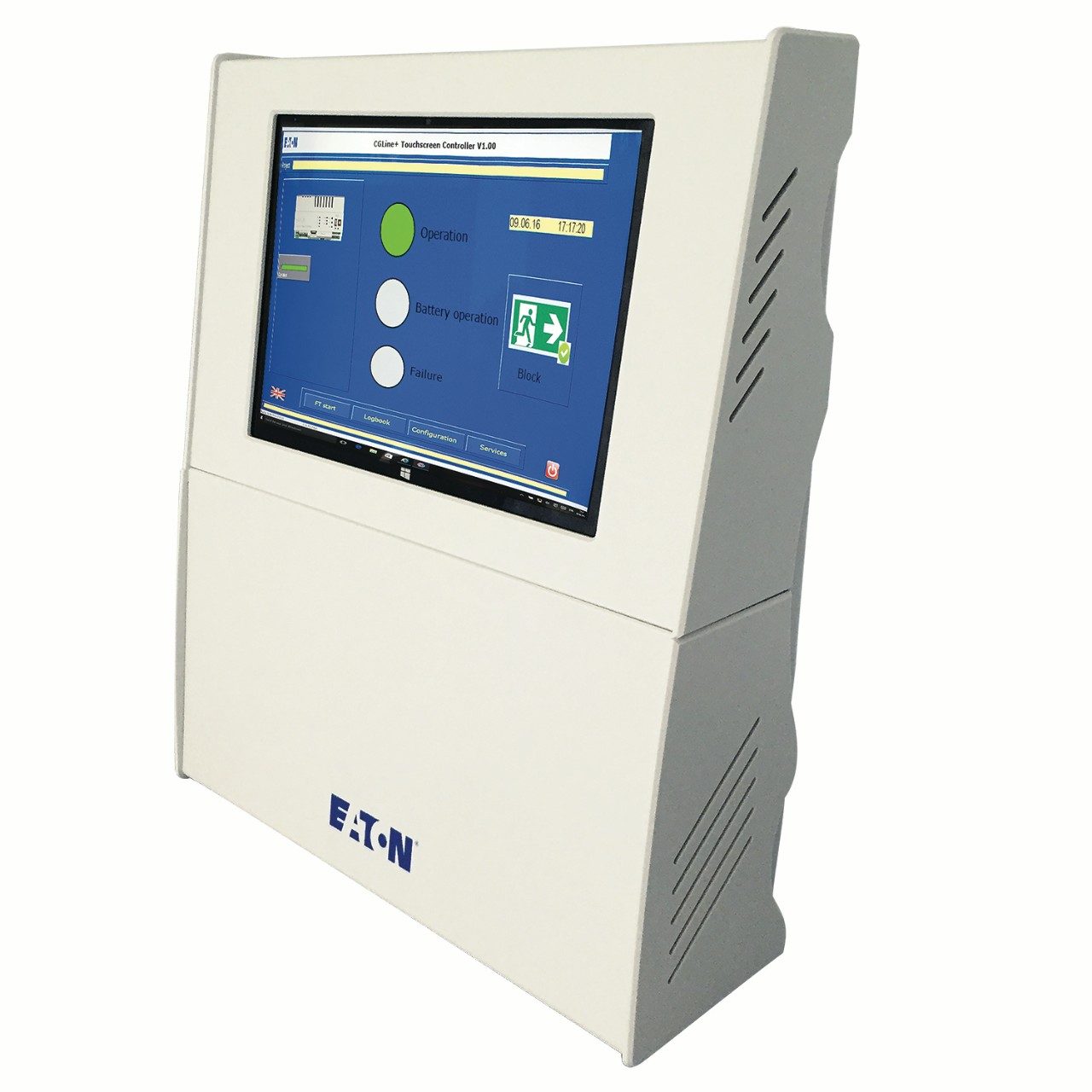

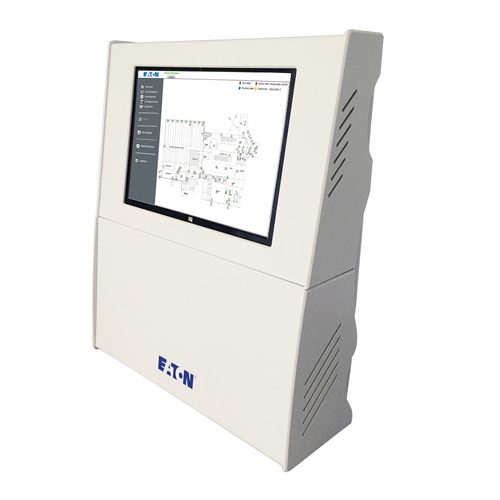

Touchscreen Controller: Web-Controller and 10-inch touchscreen in a single housing

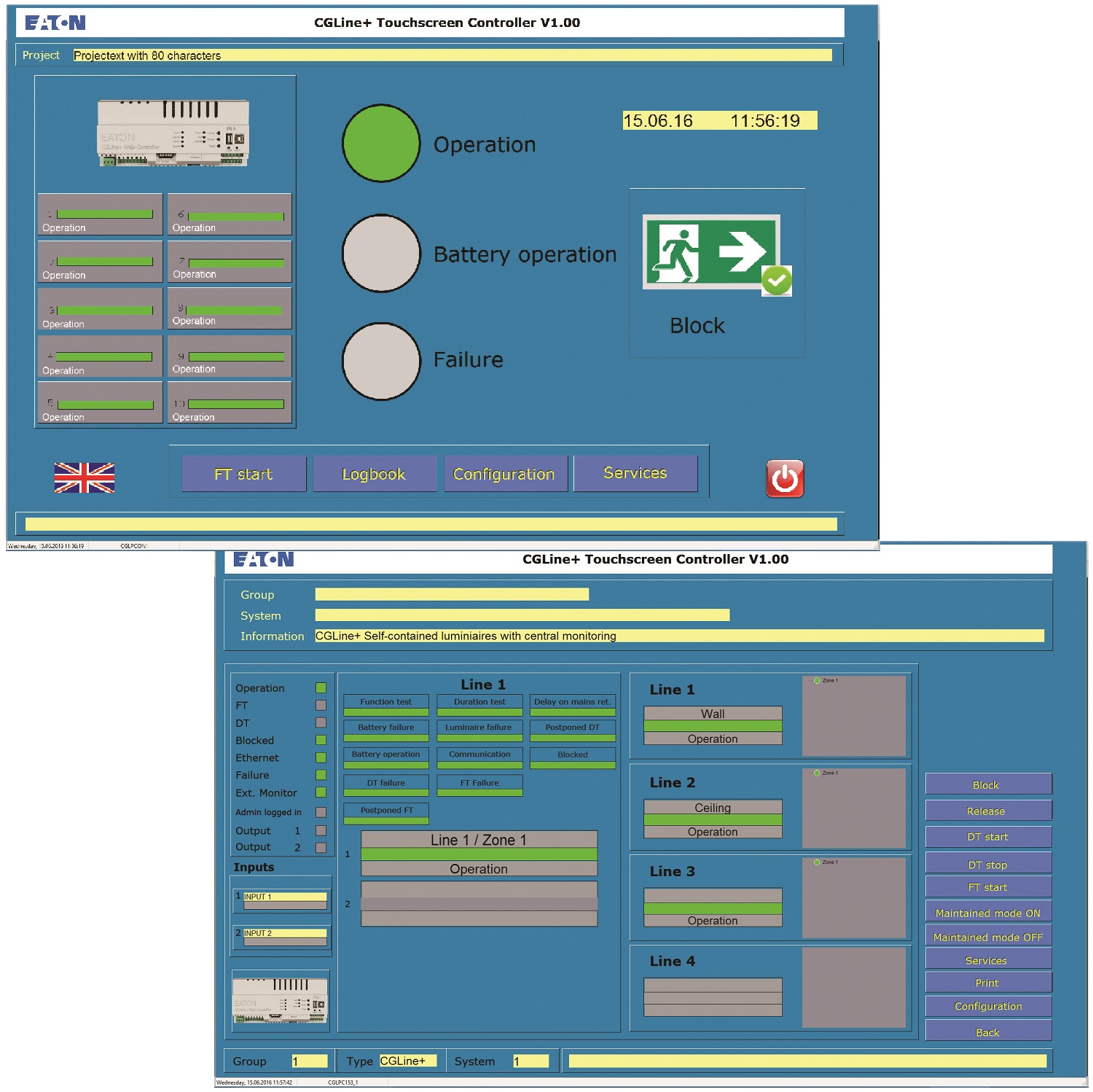

The Touchscreen Controller offers the power of the Web-Controller in an intuitive, easy to use touchscreen interface with three packages available depending on the site.
CGLine+ Web Touchscreen Controller is compatible with central CGVision software and allows full configuration and visualisation of the integrated CGLine+ Web-Controller and up-to 32 external Web-Controllers via ethernet.
CGLine+ CGVision Touchscreen S/Controller allows full configuration and visualisation of a single CGLine+ system.
CGLine+ CGVision Touchscreen G/Controller allows full configuration and visualisation of the integrated CGLine+ Web-Controller and up-to 9 external Web-Controllers via ethernet.
Ease of visualisation
