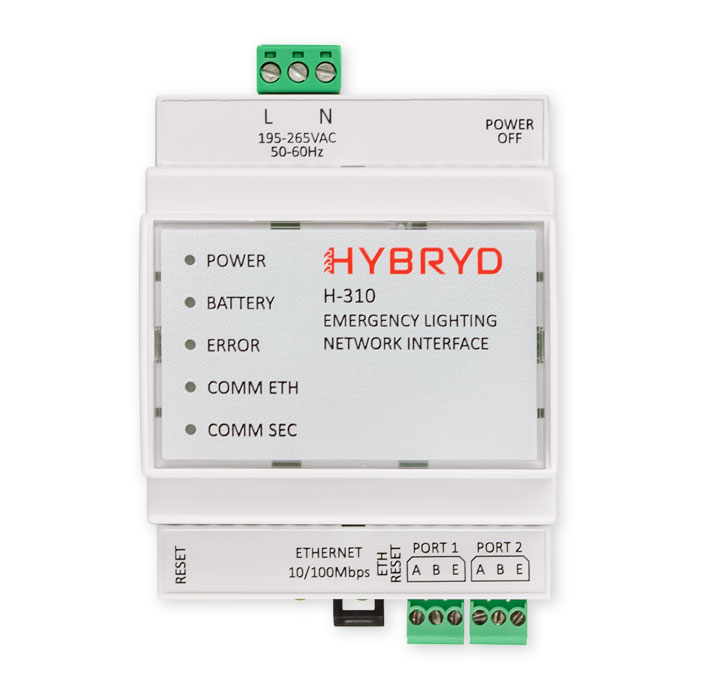

H-310 Interface
Main task of the H-310 network interface is to allow a PC computer access to the HYBRYD emergency lighting luminaire network.
The H-310 network interface is equipped with a 10/100Mbps Ethernet port and may be connected directly or indirectly by the means of a network switch to a computer. It is also equipped with two output channels of which one may be used for direct luminaire connection and the other to connect luminaires over H-311 network expanders. The H-310 network interface has two independently working communication ports. The first one can operate as CT for the required CT-BUS (PORT2), the second one can operate only as CT-BUS (PORT1).

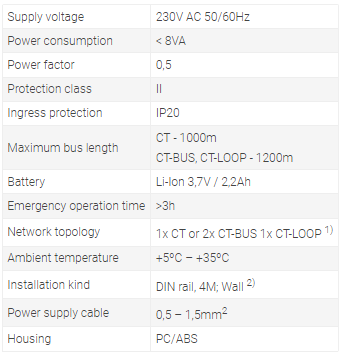

TECHNICAL DATA
CONSTRUCTION
• The device consists of an ETHERNET interface and a built-in H-311 network expander
• Device elements are placed in a modular housing designed for mounting on a DIN rail or on the wall
• Supplied using two cables (L, N), cable cross section area 0,5 – 1,5mm2, supply voltage 230V AC 50-60Hz
• Internal Li-Ion battery guarantees more than 3 hours of operation without external power
• On the front of the H-310 unit a label with the built-in network expander MAC address and ETHERNET interface MAC address is placed.
